Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine

Brand Name : LB

Model Number : LB

Certification : CE,ISO

Place of Origin : ZHANGJIAGANG

MOQ : 1 SET

Price : negotiation

Payment Terms : L/C, T/T,

Supply Ability : 15 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Packaging Details : WOODEN BOX

Material : PE

Screw Diameter : 65mm

LD Ratio : 33:1

Warranty : 1 Year

Motor : Siemens

Screw design : Single-screw

Voltage : Customer demand

Automatic grade : Full-automatic

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training

Color : Customised

Control : PLC+Touch Screen

Processing type : Extrusion Machine

Contact Now

Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine

APPLICATION:

The Horizontal PVC/PPR/PE Pipe Fitting Plastic Injection Moulding Machine is a high-performance industrial machine designed for manufacturing various types of plastic pipe fittings, including elbows, tees, reducers, couplings, and valves. It is suitable for processing thermoplastic materials such as PVC (Polyvinyl Chloride), PPR (Polypropylene Random), and PE (Polyethylene).

This machine features a horizontal clamping system for stable and precise mold operation, ensuring high-quality pipe fittings with excellent dimensional accuracy and surface finish. Equipped with advanced hydraulic and electrical systems, it offers high efficiency, low energy consumption, and long service life, making it ideal for large-scale production in plumbing, irrigation, and industrial piping systems.

PE PIPE PRODUCTION SPECIFICATIONS:

Model Pipe diameter Extruder Extruder power Capacity
LB-63 20-63 SJ65/33 55AC 150
LB-110 20-110 SJ65/33 55AC 150
LB-160 75-160 SJ75/33 90AC 280
LB-250 90-250 SJ75/33 110DC 350
LB-315 110-315 SJ90/33 160DC 450
LB-450 160-450 SJ90/33 160DC 450
LB-630 315-630 SJ120/33 280DC 850
LB-800 500-800 SJ150/33 315DC 1100
LB-1200 710-1200 SJ150/34 400DC 1350

Specifications

1.plastic products making machine

2.European technology and world-famous spare parts

3.Easy to operate and maintain

WHATS INCLUDED IN A PE PIPE PRODUCTION LINE?

Raw material → mixing→vacuum feeding → material dryness → single screw extruder → Forming mould → winding machine→finished product inspecting &packing

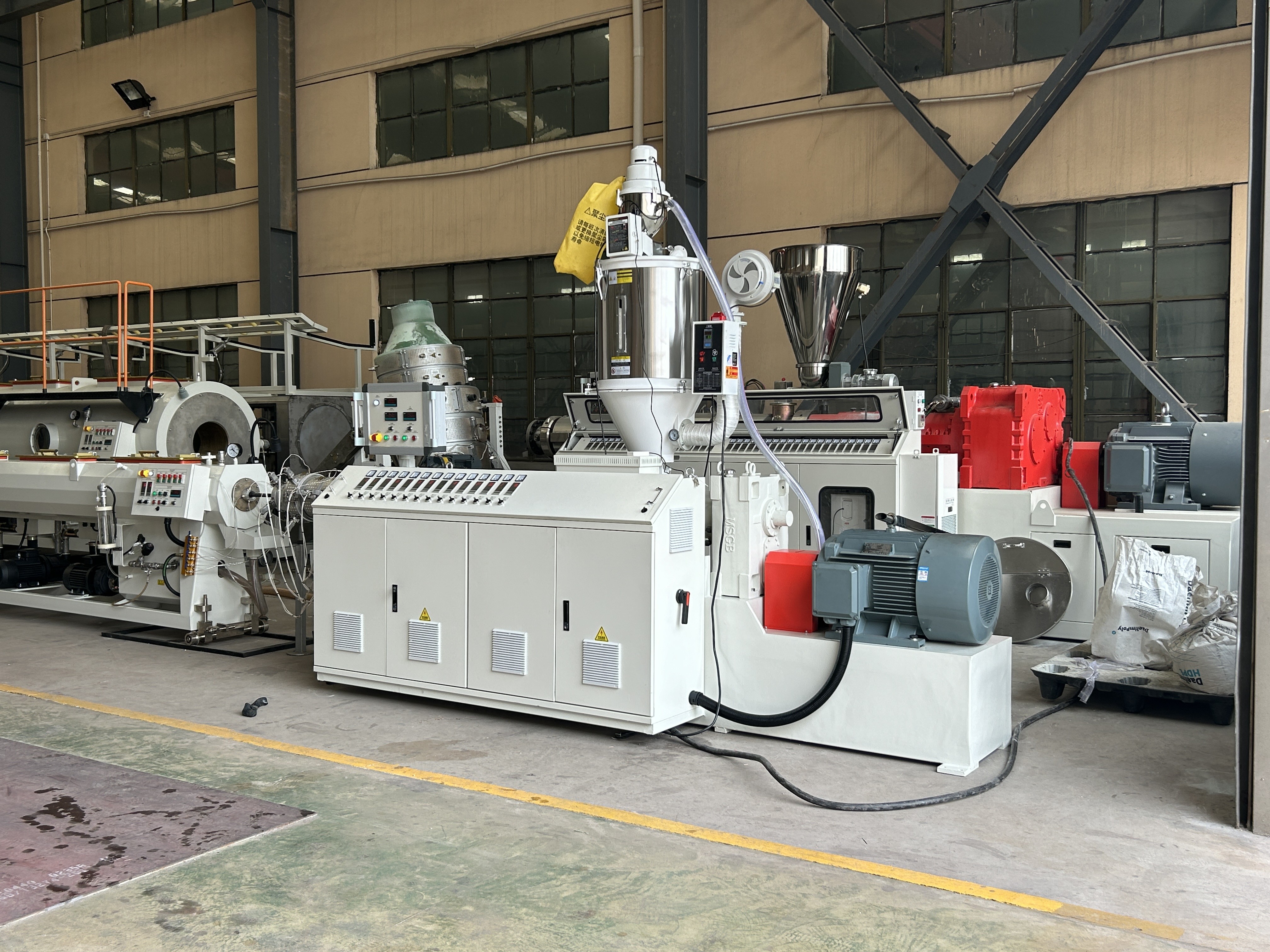

Single Screw Extruder Machine

Using the high efficient single screws, specially designed for PP,PE granule material to ensure uniformed plasticization, high extrusion. Stable temperature controlling system can guarantee high quality pipe extrusion.

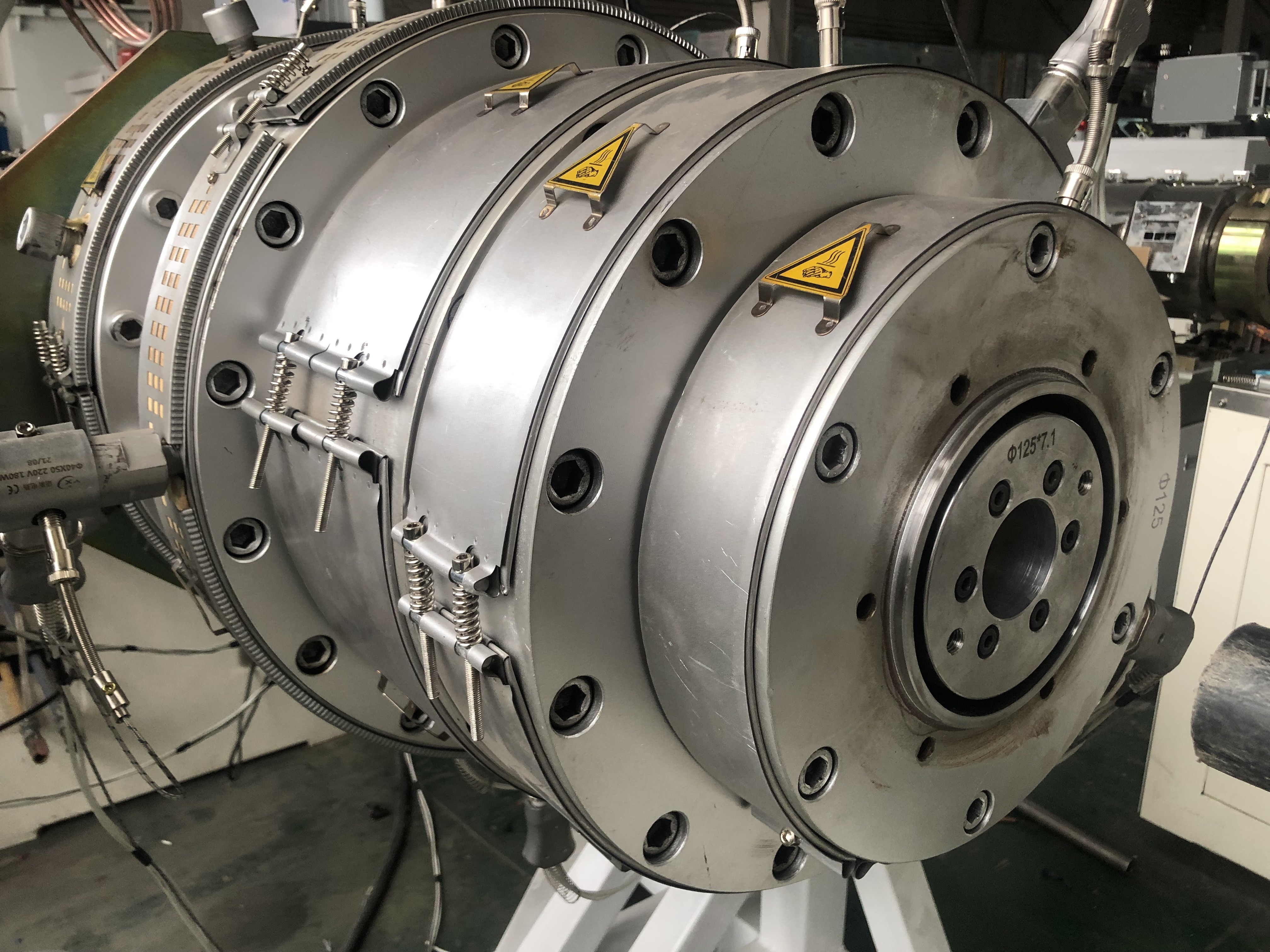

pipe extrusion Mould:
Spiral type die head will ensure high speed extrusion and avoid the thermal decomposition of amorphous plastics and get high quality pipes. There is heating control system inside of the mould, high efficient, easy to extrude. Bronze calibrators can make the pipes fast calibrated and cooled.

Vacuum cooling tank and spraying cooling tanks:
Rapid vacuum calibrating system allows the hot extruded pipes to be cooled in a very short time and obtain the final pipe diameter. Automatic temperature control system, pressure regulator, and vacuum control valve greatly enhance the pipe sizing and cooling performance as well as the production speed.

Haul off machine:
Adopts caterpillar type, which includes two-claw types, three-claw types, four-claw types, six-claw types, eight -claw types, ten-claw types, twelve-claw types etc, suitable for different sizes of pipes. Haul off caterpillar blocks are made of abrasion resistant rubber material, which can make a high and stable hauling speed.

Cutting machine:
Precision machine cutter is able to make flat, straight cuts into pipes at high speed. A powerful suction device gathers up waste scraps after cutting, thereby making it easier for users to clean the cutter.

Pipe stacker or pipe coiler
Automatic pipe stacker for packing the pipes, pipe coiler for small PE pipes like 16-40, 16-75mm, 50-110mm.

Key Advantages of PE Pipe Extrusion Line

High-precision injection molding for consistent quality

Robust horizontal clamping system for stability

Energy-efficient hydraulic & electrical systems

Compatible with PVC, PPR, PE, and other thermoplastics

Automated operation for high productivity

Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine

Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making MachineHorizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

Our factory
Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine

Our exhibition

Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine

Our goods shipping

Horizontal PVC PPR PE Pipe Fitting Plastic Injection Moulding Making Machine
