Single Screw Design Plastic PE Pipe Making Machinery Production Line With ISO Certification

PE Pipe Extrusion Line Plastic PE Pipe Making Machinery Production Line Plastic Extruder

APPLICATION:

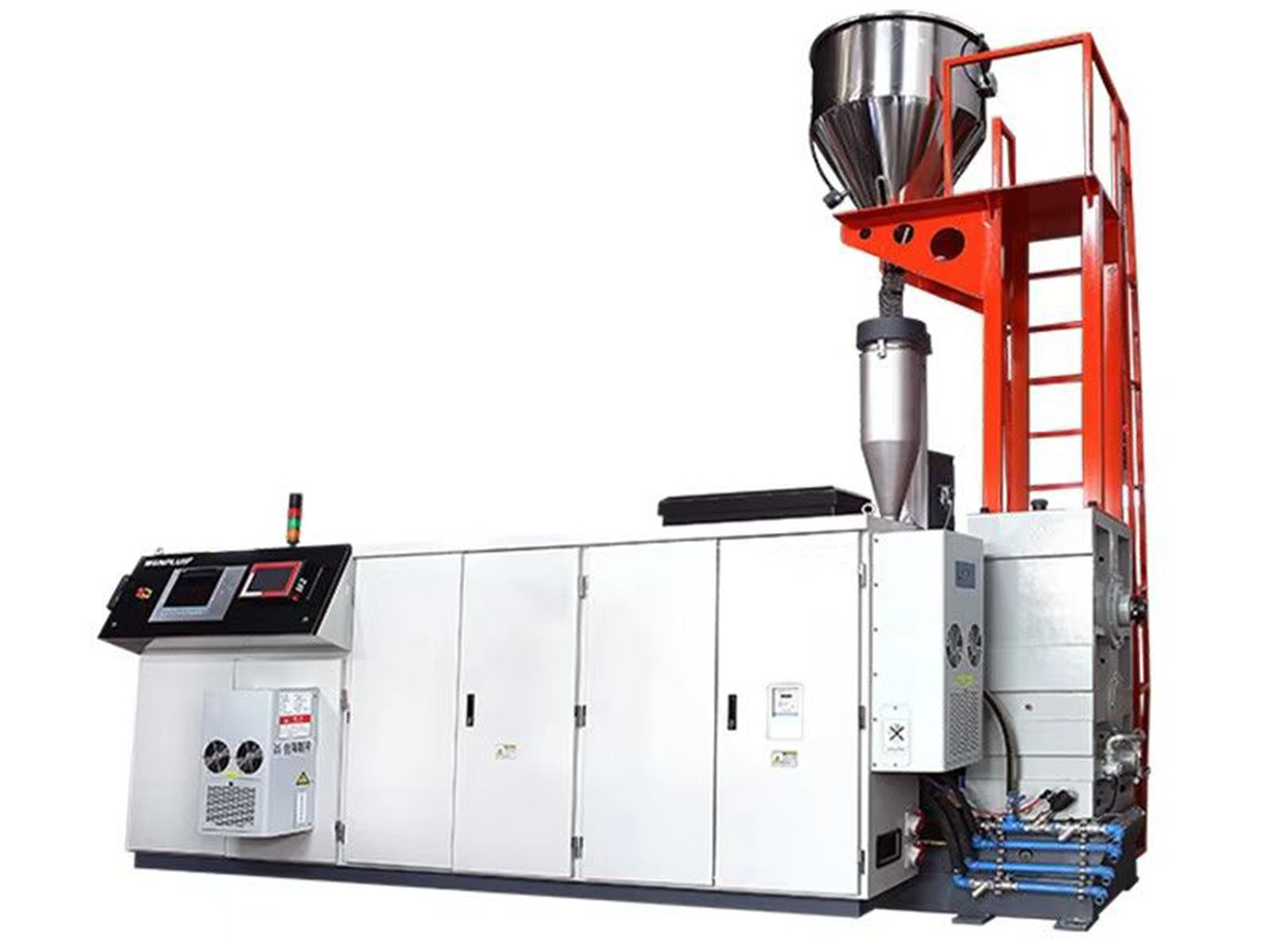

The extrusion line is consist of high effective extruder, vacuum calibration water tank, spraying water tank, hauling off machine,cutting machine and pipe stacker . The line can extrude high quality large diameter water and gas supply pipes which have excellent stiffness and flexibility, high temperature resistance, excellent heat-linkage etc advantages.

PE PIPE PRODUCTION SPECIFICATIONS:

PE Production Flow:

Raw material + additive → mixing →automatic feeding system → single screw extruder→ mould → vacuum calibration machine → cooling tank→ haul-off machine → cutting machine → stacker(Winding machine)

Material Feeding & Melting

PE resin pellets are fed into the hopper of the extruder.

The screw conveyor transports the material into the heated barrel, where it melts into a homogeneous melt at controlled temperatures (160°C–220°C).

Extrusion & Pipe Forming

The molten PE is pushed through a die head, shaping it into a pipe with the desired diameter and wall thickness.

Adjustable die molds allow for different pipe sizes (16mm–1200mm).

Vacuum Calibration & Sizing

The extruded pipe enters a vacuum calibration tank, where it is precisely sized and cooled under controlled vacuum pressure to ensure dimensional accuracy.

Cooling System

The pipe passes through a spray or immersion cooling tank to solidify its structure while maintaining a smooth surface.

Haul-Off & Traction

A servo-driven haul-off unit pulls the pipe at a synchronized speed to maintain consistent wall thickness and prevent deformation.

Cutting & Stacking

An automatic cutting machine trims the pipe to the required lengths (4m, 6m, or custom sizes).

The finished pipes are neatly stacked by a pipe collection rack or robotic arm for packaging.

Quality Inspection & Packaging

Pipes undergo visual inspection, hydrostatic pressure testing, and dimensional checks.

Offer different kind of Plastic pipe threading Machines:

1. PLC Control Automatic Plastic pipe threading machine.

2. CNC Autmatic Plastic pipe threading machine.

3. Semi-Automatic Plastic pipe threader machine.

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions

we will offer customers spare parts at cost prices all life long of the machines.
