PE Water Supply Pipe Machine Production Line Machinery Extruder

Brand Name : LB

Model Number : LB

Certification : CE,ISO

Place of Origin : ZHANGJIAGANG

MOQ : 1 SET

Price : negotiation

Payment Terms : L/C, T/T,

Supply Ability : 15 SETS PER MONTH

Delivery Time : 45 WORKING DAYS

Packaging Details : WOODEN BOX

Material : PE

Screw Diameter : 65mm

LD Ratio : 33:1

Warranty : 1 Year

Motor : Siemens

Screw design : Single-screw

Voltage : Customer demand

Automatic grade : Full-automatic

After-sales service provided : Engineers available to service machinery overseas,Online support,Video technical support,Field installation,commissioning and training

Color : Customised

Control : PLC+Touch Screen

Processing type : Extrusion Machine

Contact Now

PE Water Supply Pipe Machine Production Line Machinery Extruder

APPLICATION:

PE Plastic Water Supply Pipe Extrusion Line adopt high speed extruder with high efficient,energy saving. The extruder have water recycled inside with metering material loading device;
The single-screw extruder and the traction machine adopt imported AC frequency conversion speed regulating device, and the vacuum pump and traction motor are all made of high quality products. The tractor is driven by two claws, three claws, four claws, six claws, eight claws, ten claws, and twelve claws. Available with chipless cutting, saw blade cutting or planetary cutting, the unit has reliable performance and high production efficiency.

PE Water Supply Pipe Machine Production Line Machinery Extruder

PE PIPE PRODUCTION SPECIFICATIONS:

Model Pipe diameter Extruder Extruder power Capacity
LB-63 20-63 SJ65/33 55AC 150
LB-110 20-110 SJ65/33 55AC 150
LB-160 75-160 SJ75/33 90AC 280
LB-250 90-250 SJ75/33 110DC 350
LB-315 110-315 SJ90/33 160DC 450
LB-450 160-450 SJ90/33 160DC 450
LB-630 315-630 SJ120/33 280DC 850
LB-800 500-800 SJ150/33 315DC 1100
LB-1200 710-1200 SJ150/34 400DC 1350

Features of the production line:

1. The mold adopts spiral runner design, with uniform distribution of each layer and no fusion line.

2.The extruders are driven by servo motors with precise control and stable material output.

3. Cooling water circuit adopts internal and external self-circulation, independent of each other, preventing water from being polluted.

4. The traction cutting is driven by servo motor, and controlled accurately, to ensure that the cut product incision is flat and the length is consistent.

Process flow:

Raw material + additive → mixing → vacuum feeding machine → hopper dryer → single screw extruder → color code extruder → mould and calibrator → vacuum forming machine → cooling tank → haul off machine → cutting machine → stacker

Extrusion

The single-screw extruder melts and homogenizes the PE material, then pushes it through a pipe die head to form a continuous pipe shape. Temperature zones are precisely controlled for optimal melting.

Vacuum Calibration

The molten pipe enters a vacuum sizing tank, where it is cooled and precisely shaped under negative pressure to ensure accurate outer diameter and wall thickness.

Cooling

The pipe passes through a spray or immersion cooling tank to solidify its structure while maintaining dimensional stability.

Haul-Off

A caterpillar haul-off unit grips the pipe and pulls it at a synchronized speed, ensuring uniform tension and straightness.

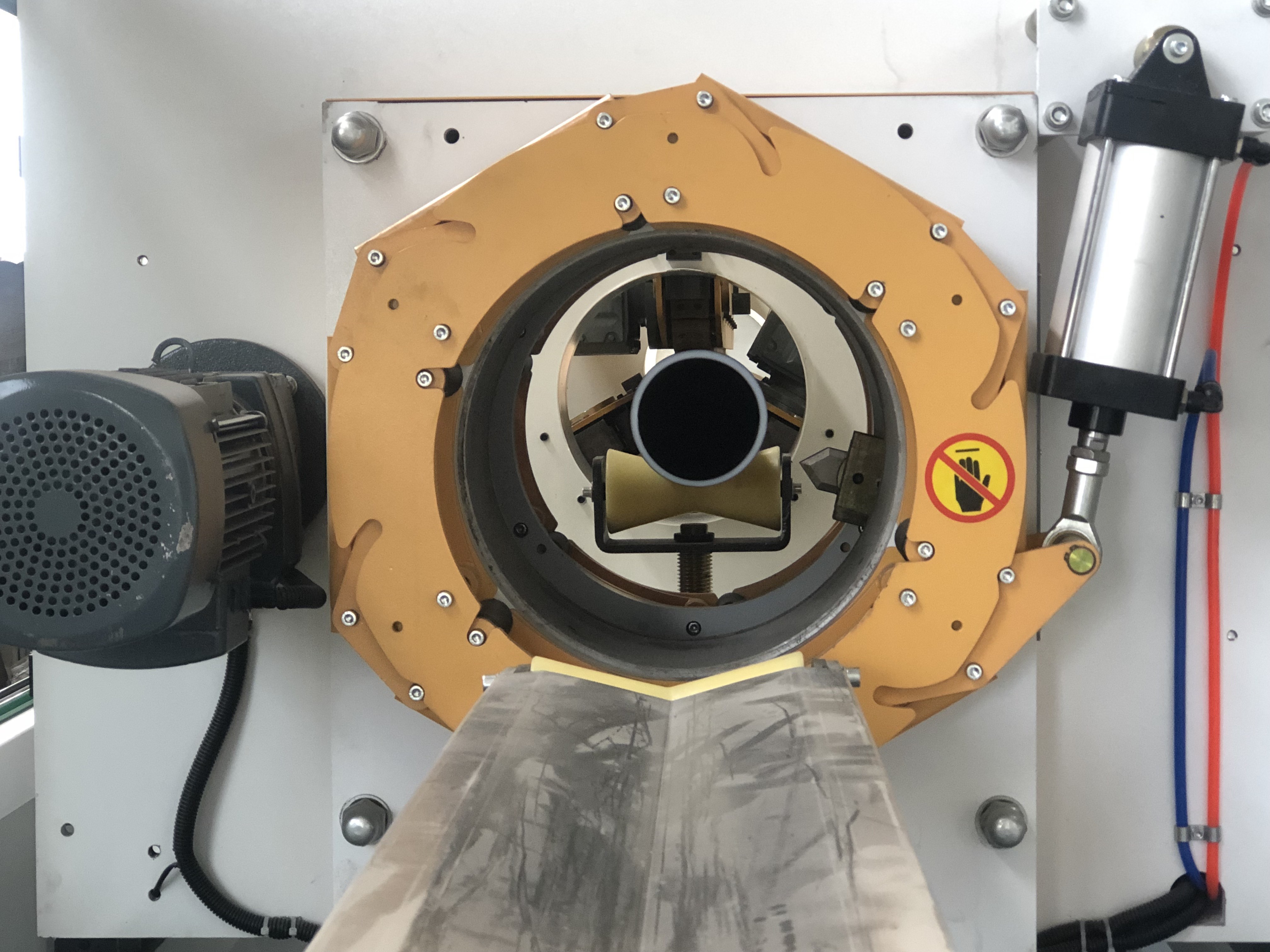

Cutting

An automatic cutting machine trims the pipe to specified lengths (e.g., 6m/12m) with clean, burr-free edges.

Stacking/Packaging

Finished pipes are conveyed to a stacking rack or bundled automatically for storage/transportation.

Quality Inspection

Optional inline systems check pipe dimensions, pressure resistance, and surface quality.

PE Water Supply Pipe Machine Production Line Machinery Extruder PE Water Supply Pipe Machine Production Line Machinery Extruder

PE Water Supply Pipe Machine Production Line Machinery Extruder PE Water Supply Pipe Machine Production Line Machinery ExtruderPE Water Supply Pipe Machine Production Line Machinery Extruder PE Water Supply Pipe Machine Production Line Machinery Extruder

PRE- AND AFTER-SALE SERVICES

• A great wealth of experience,

• A consistent focus on the highest quality

• A complete twin pipe vacuum sizing system;

• Controlled independently unitary structure twin pipe hauling mechanism and synchronous cutting device;

• Optional length set and accurate adaption stacker.

• A highly motivated team

• Sophisticated process technology

• Customized solutions
